Projects

Passive power supply load tester is unavoidable part of the embedded system design process. It allows to determines the current/power headroom of the designed power rails and their thermal profiles. Requirements: Ability to control current consumption in discreet steps Current,

In case where multiple control points are needed a custom PID controller is a natural approach. Such a solution is developed using ARM Cortex M7 MCU which besides Ethernet interface has RS485. Device has TCP server which allows for configuration

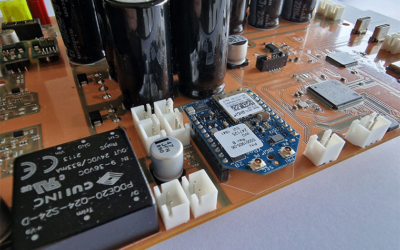

Being part of the sophisticated system designed to conduct analysis of plant leaves in order to detect anomalies, this device allows a generation of the short but ultra strong light bursts. Beside a strong PWM driver running at 48V the

Versatile DC load control and connectability via CAN bus are the main features of OTM system. The system includes two types of devices one gateway with USB, WiFi/BLE and CAN interface and many CAN controller devices with ability to drive

DSP we eat for breakfast… that is the the moto of this board concept. Performing Wavelet decomposition every 20/16ms on 20k data points in less than 8/6.4 ms takes some serious optimization. Beside wavelet, board computes RMS and zero crossing

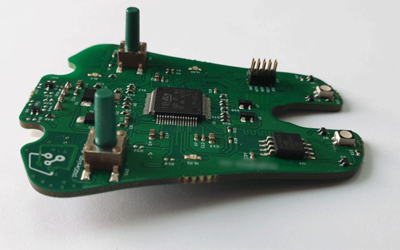

Two USB interfaces FS & HS, working in both Host & Device mode to allow MIDI data streaming through BLE interface. Requirements: USB FS and HS mode, USB Host and Device roles, USB MIDI class, BLE interface for MIDI message

Yet another but way more complex camera image capture device. Beside still and motion image capture into non-volatile parallel NAND flash, device has preview capabilities on TFT LCD 480×272 display and WiFi/BLE streaming. Requirements: Image capture up to 5 Mpix,

Demanding graphic interfaces, smart actuator control and monitoring is all achievable through the utilization of the STM32H7 dual core family. This device performs complex actuator control: heater, DC motor, pump in order to process the milk per given specification…. and

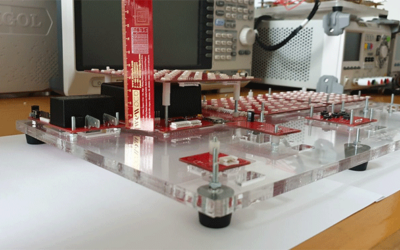

This is multiboard system comprised of 6 boards designed to allow household identification and alarm signaling in case of emergency. Requirements: Generic smart LED controller, BLE/WiFi interface for device configuration, Sound alarm and laser control, Wireless communication via SubGHz interface,

This is one of those its going to be simple project and yet you mange to experience all kind of anomalies there are… Equipped with low power application MCU and sound generation and detection sensor, device can detect objects and

We designed a satellite … nah just kidding but we did work on device which is a part of the Cube Satellite, device that allows for CubeSat position it self for maximum sun light input. Device is ultra small and

This is one of that devices that had too many revisions, not by error but due to client requirements evolving from one to another version. It started as a simple what-if a project with 2 layer board and ended up

Its always fun to design with STM32H7 MCU’s as they allow wide spectrum of peripherals and this is one such project which has almost all of them utilized. Device plays fast sequence of JPEG images by decompressing them and pushing

This device has the ability to control arbitrary type of the smart LEDs (APA102,WS2812,SK6812 etc.) with the predefined animations. OTA firmware upgrade and configuration of the device is done through the Bluetooth LE interface. Board utilizes the USB C connector

A BLE enabled UV light level measurement device which sends the notification to mobile device once the certain threshold is exceeded. This was a two phase project where the device size is reduce significantly due to mechanical constraint. Device wake-up

Device designed to allow control wireless access and control of three 110/220VAC loads up to 8A. Device configuration is implemented through the TFT LCD touch interface. Requirements: WiFi communication interface, AC load control, TFT LCD 480×272 interface with capacitive touch,

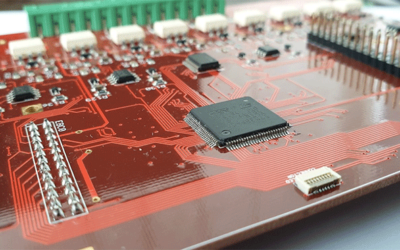

Comprehensive slave board designed as an extension to SBC (RPI or Radax board) in order to achieve control of 12 AC sprinkler valves. Water detection and temperature monitoring are implemented on slave board. For each load current consumption is measured

For a group of analog gas sensors there was a requirement for the design of the generic cape board that will allow analog data conditioning and amplification and then conversion into digital data. Requirements: Analog front end for range of

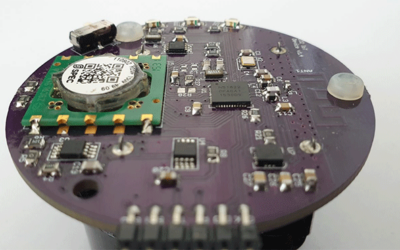

Low power BLE enabled CO2 and NO2 gas monitoring device. Beside the gas level monitoring device allows for ambient temperature monitoring and setting the thresholds for all sensors to generate alarm notifications. Device BLE interface is activated through the predefined

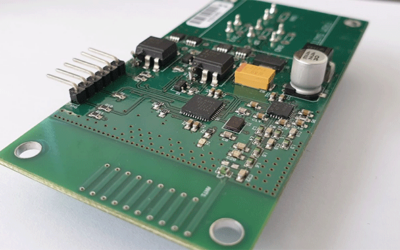

Very simplistic RF enabled (subGHz range) switch with two control points which are opto-isolated. Requirements: NFC Type 2 Tag reader Stepper motor controller UART communication, Major components: MSP430F2272 TL1963 CC1101 4N25 Number of PCB layers: 4 BOM price: 28 USD Realization time: 2

If you are tired to watch over your grill then this is your device. Capable of snapping pictures up to 5 Mpix and sending them to cloud via WiFi interface. The camera exposure to grill goodies is achieve through the

BLE enabled device to serve as price tag in market place. The benefit of the device is ability to update prices remotely and via automated scripts through the BLE interface. For long power supply option a motion activation mechanism can

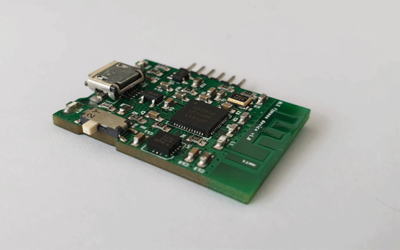

Tracking your step count is main function of this device by utilizing a custom algorithm enhanced with DSP. Requirements: BLE interface for device configuration, Motion detection, Step tracking, Low power profile. Major components: nRF52832 ADXL362 GDEW0154Z04 TPS61220 Number of PCB

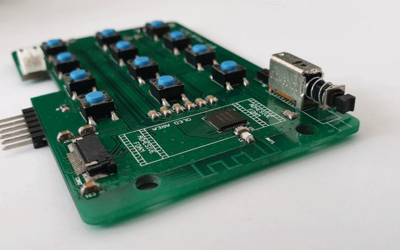

Secure transfer of information is a key feature of this device by utilizing AES encryption mechanism. Device keyboard allows entering predefined sum of money and transferring via secure BLE link. Requirements: BLE interface for device configuration, OLED display for data

Eight channel resistance measurement from the FSR sensor is captured and transmitted via BLE interface on this device. Data is sampled at the real time pace 50 samples per second on each channel and stored into non-volatile serial flash. Requirements:

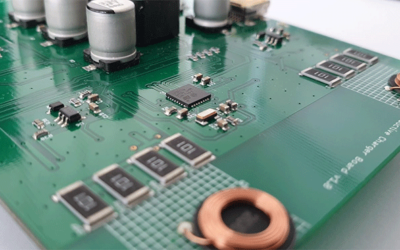

This is a multi-board system comprised from two types of devices sensor/hub and inductive charging station. Multi-role multi-connection of BLE interface is key feature of the sensor/hub device. Up to 12 BLE slave sensor devices can connect to one central

Capturing all raw traffic and pushing it through the WiFi interface is the main description of this device. Requirements: BLE interface for device configuration, Raw BLE traffic capture, BLE traffic streaming via WiFi interface. Major components: nRF52832 CC3100 LD39100 Number

If you are fan of RPi Zero then these hats might come handy to you. Designed to enable BLE/WiFi communication interface and to expose additional GPIO pins. Requirements: BLE interface, WiFi interface, Major components: nRF52840 ESP32 ES8266 Number of PCB

If you are fan of RPi boards these cellular hats might be handy. Requirements: Cellular networking 2G, 3G & 4G WiFi interface, Major components: ESP32 SIM7100 SIM868 SIM5360 Number of PCB layers: 4 BOM price:  50 USD Realization time: 4 weeks

Simple but neat, BLE enabled ISO and ANSI keyboards. Requirements: BLE interface, USB HID Class, Low power profile. Major components: nRF52832 STM32F103 BQ24074 TPS79633 Number of PCB layers: 4 BOM price:  54 USD Realization time: 6 weeks

This is one mighty WiFi to IR code translator. The IR codes are downloaded from Internet database and the device can support any TV/VCR/HVAC/Player with IR interface. Requirements: WiFi Interface for communication and configuration, IR transmitter, Battery powered. Major components:

Image capture up to 5 Mpix and transmission via 3G Cellular network is the key function of this device. This is a two device system which Requirements: 3G Cellular interface, JPEG image capture, HTTP protocol. Major components: STM32F767 & STM32L496

Real-time audio from quad microphone at 16 b/Sample @16kHz PCM code is full spec of this device. Device WLAN interface is configured via BLE interface and as well streaming parameters. Requirements: WiFi interface, Audio beam forming, Audio streaming. Major components:

As the name say a simple NFC sniffer/reader/writer. Requirements: NFC data capture, Store records into non-volatile serial flash, Battery operated. Major components: STM32L433 ST25R3916 MX25V8035 BQ25100, TLV7553 Number of PCB layers: 4 BOM price:  40 USD Realization time: 6 weeks

Up to 12 of this devices can be used to form a sub GHz mesh network based on the custom protocol. In this network, device can be master or a slave. Difference is, that the master has the access to

Live image streaming via wireless link at rates up to 35 FPS is main feature of the dental device. Two variants of the board where built in order to explore the image size vs required throughput performance on the FPS

CAN controlled and configurable milking controller for cattle milk dispensing. By employing complex actuator sequence realized through the two PWM channels and three ADC channels on pressure sensors, a smart milking system is realized. Status messages are shown on a

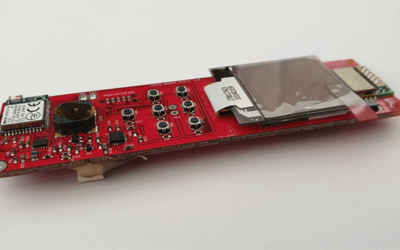

A multi-board system designed for purpose of improving fishing experience. System includes remote controller with BLE and sub-GHz communication interface, keypad and OLED display. On the remote side a board that allows RGB light control for purpose of bait simulation,

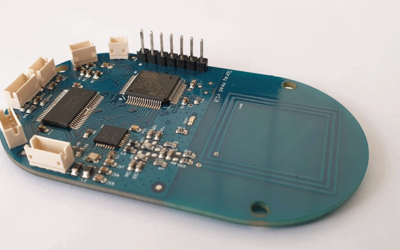

NFC reader and two stepper motor drivers are integrated into this small board. The board allows identification of the spray head through small 25 mm NFC Type 2 tag and serves as mechanism for master device to distribute spray content

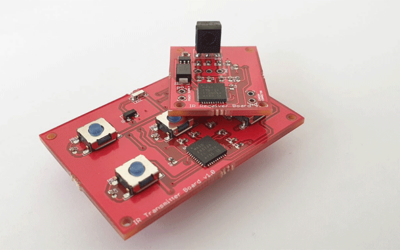

The idea behind this simple IR communication enabled set of boards is to allow remote control of Red Epic or Weapon camera via the RS232 interface. Requirements: IR communication up to 10 meters, Configurable IR key codes, IR to UART

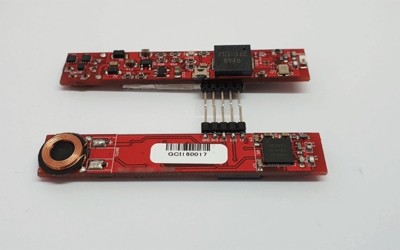

As name it self states this is a small BLE enabled keychain with inductive custom built inductive charging mechanism. The device once paired with mobile phone tracks the distance from mobile phone. If the mobile phone distance from keychain is

Low power low voltage 1V8 BLE board to enable IMU sensor data streaming and logging on NOR serial flash memory. Requirements: BLE interface for device configuration BLE IMU data streaming via notifications Serial NOR flash data logging 64MB UART2USB interface
